DOT Releases New Design Boards for Grand Army Plaza
NYC DOT released their latest design boards for the Grand Army Plaza redesign at this week’s public workshops. The boards show the updated plan based on community feedback, three plaza design concepts, and the full traffic and operations analysis.
Here are the key boards. Click any image to view full size.

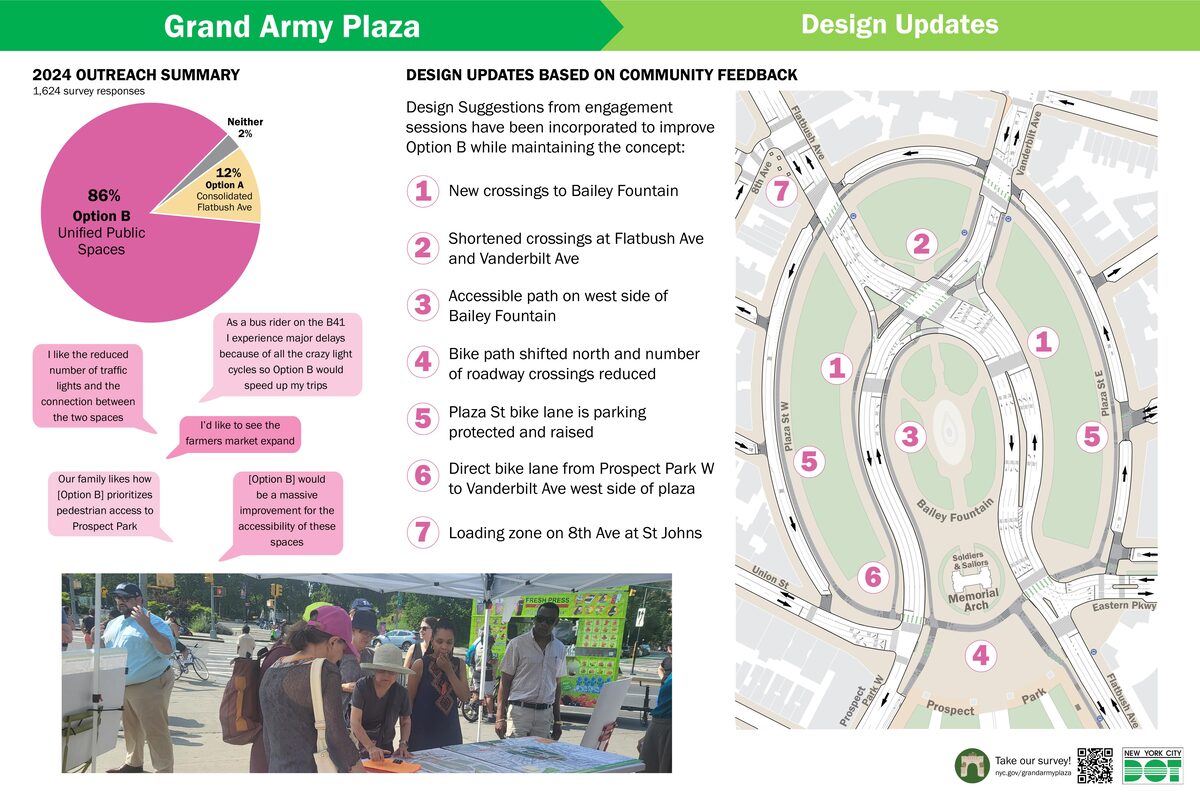

Design Updates
The plan has been refined based on feedback from 1,624 survey respondents (86% chose Option B). Seven numbered changes are mapped on the right — new crossings to Bailey Fountain, shortened crossings at Flatbush and Vanderbilt, a parking-protected bike lane on Plaza Street, and more.

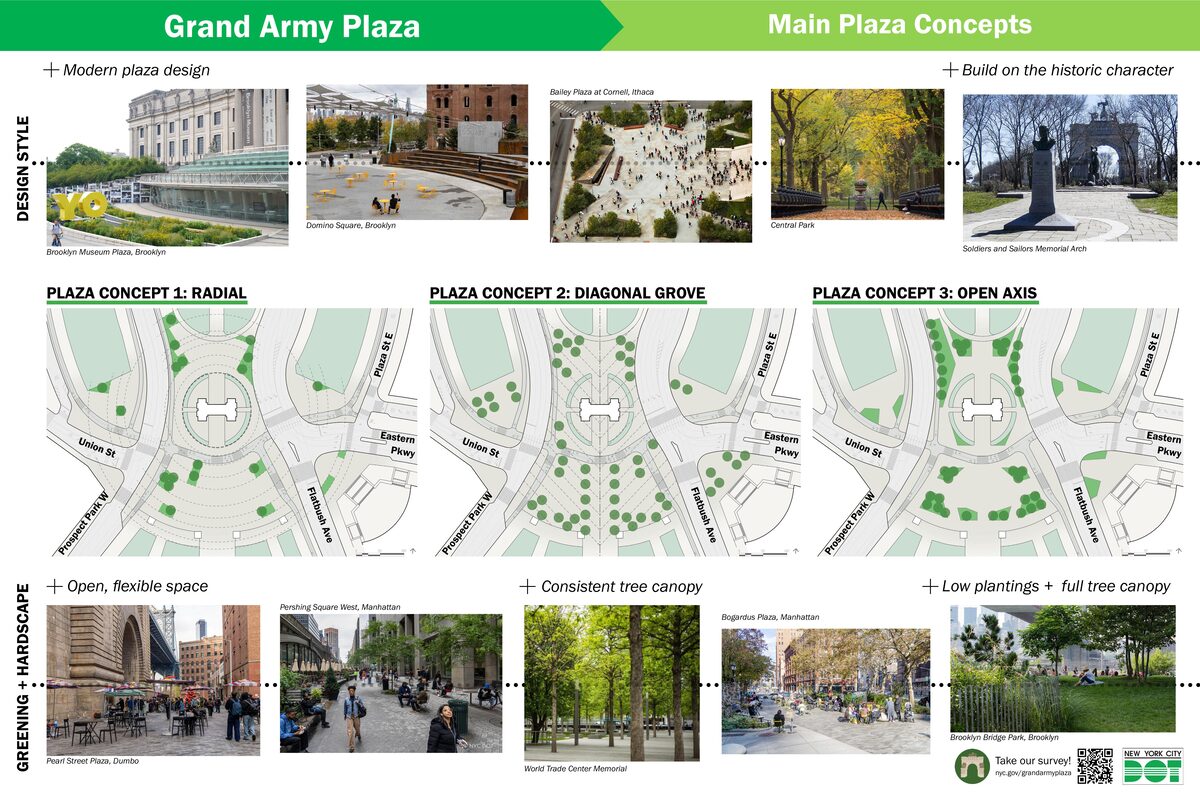

Three Plaza Concepts
DOT is presenting three design directions for the new pedestrian space: Radial (modern, open, flexible), Diagonal Grove (consistent tree canopy), and Open Axis (historic character, large events). Each includes seating, landscaping, and programmable space.

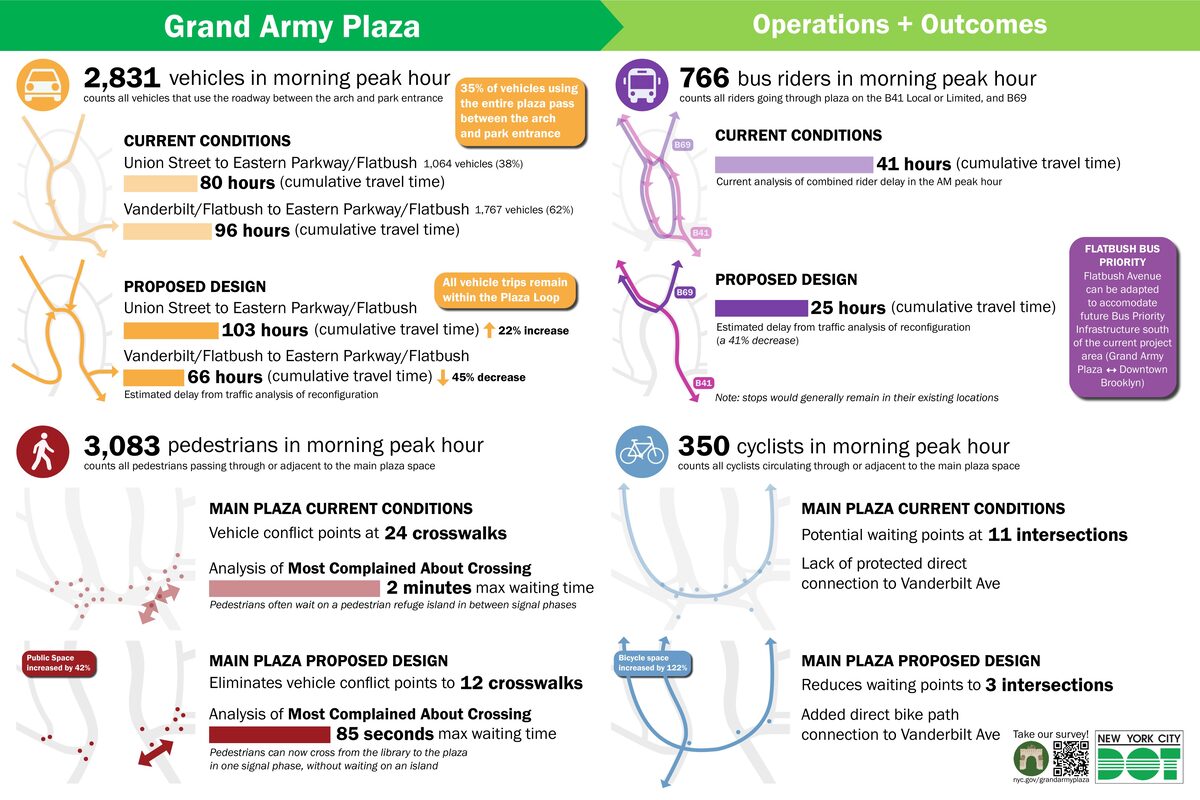

Operations + Outcomes
The numbers. Crosswalks drop from 24 to 12. Intersections from 11 to 3. B41 rider delay decreases 41%. Vanderbilt/Flatbush travel time to Eastern Parkway decreases 45%. Pedestrians can cross from the library to the plaza in a single signal phase.

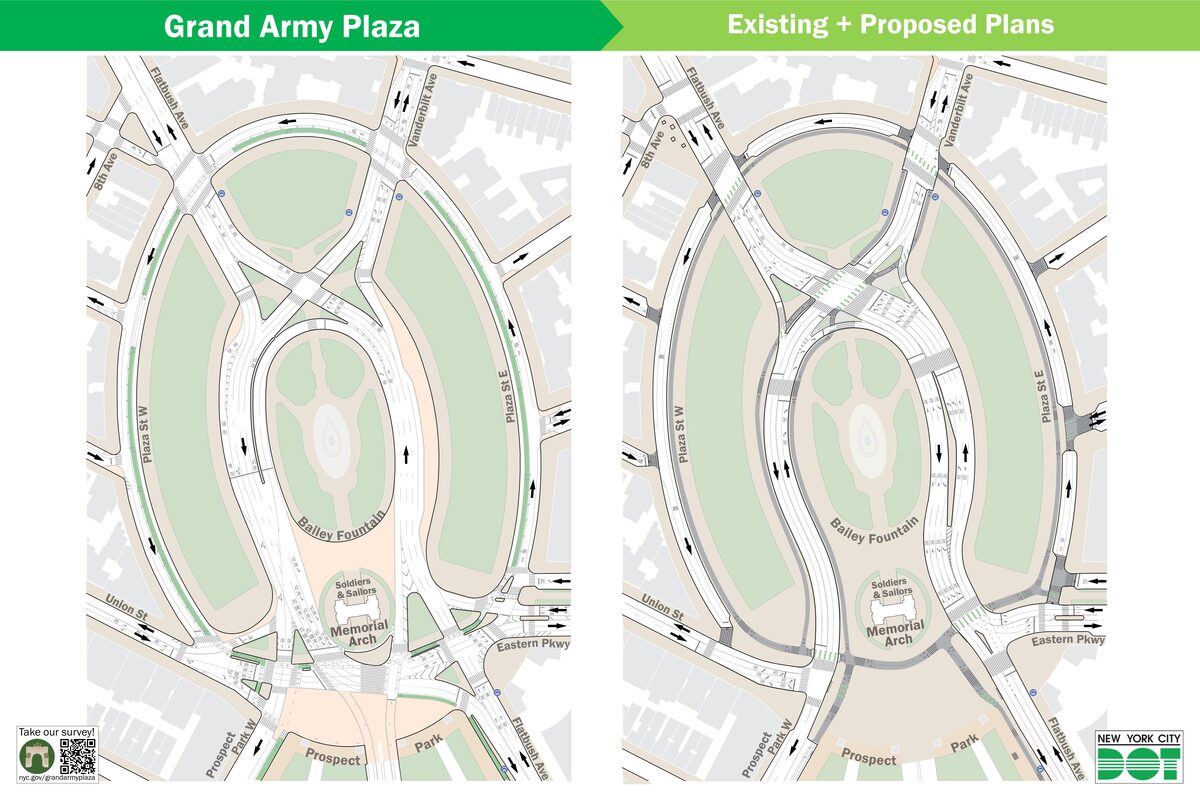

Existing vs. Proposed
Side-by-side comparison of the current layout and the proposed design. The southern roadway between the Arch and Prospect Park is replaced with pedestrian space.
Download the PDFs
- Outreach Boards — April 2026 (PDF) — the design update boards shown above
- Workshop Materials — April 2026 (PDF) — detailed vehicle flow analysis for every approach road
- Tableros de divulgación — Spanish (PDF)
Have questions about what the boards show? Check our FAQ for answers on traffic, parking, buses, and more.
